Control: AI Annotation Reader - Vertical Parsing and CF

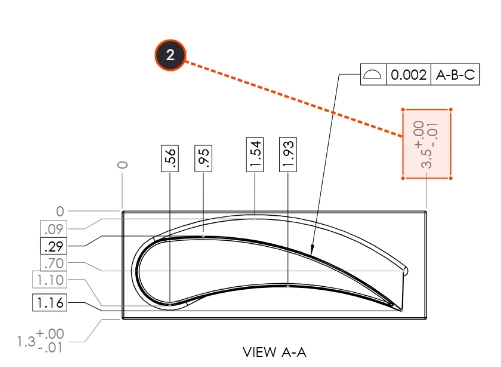

There are a lot of times on drawings where the feature control frames or measurement information is oriented vertically because it flows better with the drawing.

However, our AI was not doing a great job at parsing out this information from the image because it was expecting the text to be readable from left to right.

We now take vertically oriented images and rotate them before parsing out measurement info so that we can get much more accurate results from image snippets taken vertically.

‍
